Laser Marking Machine

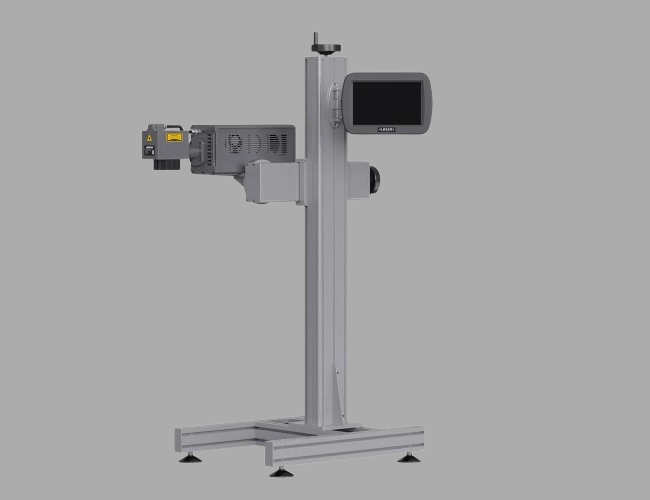

CO2 FLY LASER MARKING MACHINE

Product Parameter

  • Power - CO2-30W / CO2-40W / CO2-60W
  • Machine material- All aluminum sandblasting oxidation
  • Laser- The service life is more than 20000-30000 hours
  • Laser wavelength- 1060nm/1020nm/930nm
  • Output power- >38W >43W >170W
  • Marking speed-
  • Cooling system- Air cooling
  • Laser source- CRD/DAWEI
  • Focus lens- 145mm
  • Minimum line width- 0.03mm
  • Repeated accuracy- 0.01mm
  • Marking range- 11Ommx110mm (Option)
  • Number of rows- Any line within the marking range
  • Production line speed- 0-130m/min (depend on the material)

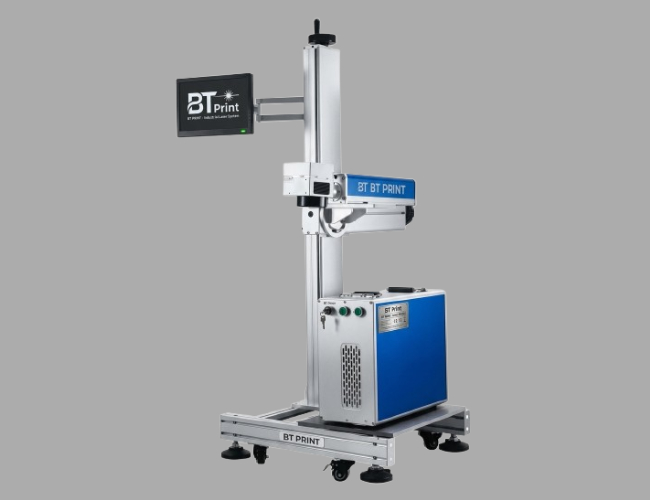

Fiber Laser Marking Machine 30W

Specification

  • Application - Laser Marking
  • Laser Type- Fiber Laser
  • Graphic Format Supported- AI, DXF, BM P, TIF, PCX, TAG, GIF, PLT
  • BAR Code/QR Code- All types of BAR Code and QR Code and Data Matrix Code
  • Cooling Mode- Air Cooling
  • After- sales Service Provided- Online and offline support
  • Laser Head Brand- ONYA
  • Laser Source Brand- MAX
  • Work Table size- 110x110mm, optional 160x160mm
  • Control System Brand- 200x200mm JCZ
  • Working Accuracy- 0.001mm
  • Control Software- EZCAD
  • Laser Wavelength- 1064nm
  • Laser Power- 20W,30W,50W
  • Laser Life duration- 80,000 Hrs.
  • Repeatable Frequency- 20Hz-200kHz
  • Max Scanning Speed- 7000mm/s
  • Min Letter- 0.2mm
  • Min Width- 0.01mm
  • Power Supply- AC220/50Hz
  • Power Consumption- s500W

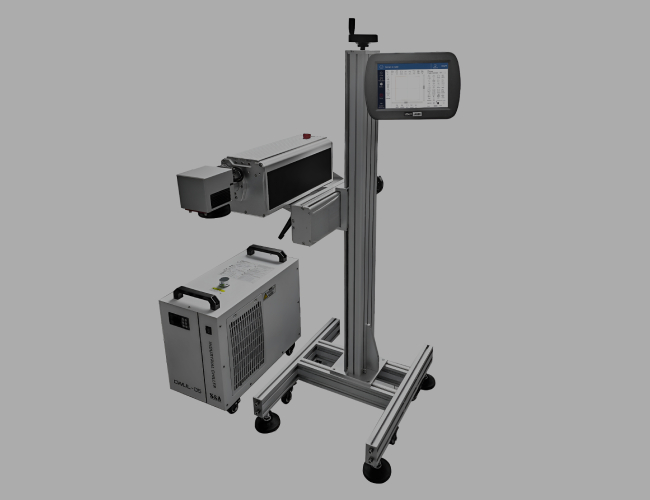

UV Laser

Equipment Specifications

  • Laser power : 3W (U103), 5W (UFOS)
  • Cooling method : Water cooling
  • Marking software : Star Dance
  • Software support system : LINUX
  • Support graphics format : PLT, DXF, Al, JPG, BMP
  • Support language : Chinese, English, French, Korean, apanese, Arabic, Russian, Portuguese, Thal. Spanish, Vietnamese, German, Persian, Turkish
  • Marking area location Double red dot focusing, Red light scanning of marking path
  • Marking content : Text, graphics, barcode, time, serial number, batch number, etc.
  • Marking area : 110 mmx110 mm, Area size customizable
  • Maximum marking content : No limit for lines within this area
  • Speed : 7500 mm/s
  • Material : Aluminum alloy + stainless steel
  • Size : 1420mm X 650mm X 510mm
  • Net weight : 75Kg
  • Input voltage : Single phase, AC 100-240V, 50/60Hz, 10A
  • Working humidity : 10-90%RH, No ice And No Condensation
  • Working temperature : 0°C-45°C

Laser Specifications

  • Average output power : 3W (UF03), >5W (UFOS)
  • Wavelength : 355nm
  • Pulse repetition frequency : 1-150KHz
  • Power adjustment range : 10 100%

Water Chillers Specifications

  • Tank capacity : 6L
  • Max.Pump lift : 12M
  • Max.Pump Flow : 13L/min
  • Dimension : 580mm x 290mm x 470mm
  • Net weight : 25Kg
